Zenith® Cigarette Ash Waste Bin

Buy this product online

Our Zenith cigarette ash waste bin range is based on the design of our standard Zenith bollard. The outdoor ashtray bins have a tri lock and key system for ease of emptying when the base plate is released. Ideal for mounting outside theatres, pubs and office buildings.

**No returns or exchange**

Product Code	Description	Diameter (mm)	Height (mm)	Capacity (litres)
ZEN 275	Wall or post mounted 2kg	Ø75	485	2.5L
ZEN 200	Wall mounted 2kg	Ø115	460	1.7L

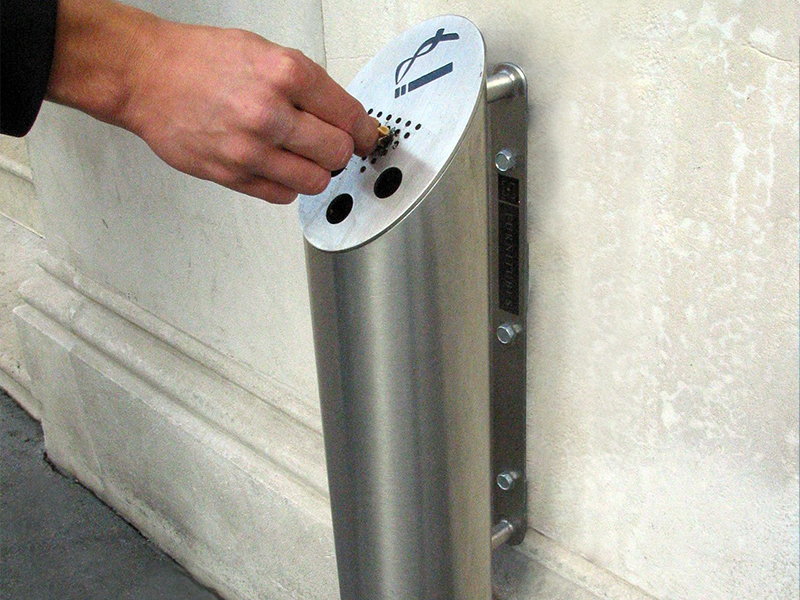

Wall Mounted

Fitting the wall bracket: Hold the wall bracket up and mark hole positions
Drill holes and fit plug: Fit the bracket using fixings that are suitable for the wall surface e.g., a no.10 woodscrew – at least 25mm long
Slide the ash waste bin onto the wall bracket and line up the holes
Use the 2 M8 x 40mm bolts and lock nuts (supplied)
Optional use of adhesive (Such as Loctite®) to avoid theft

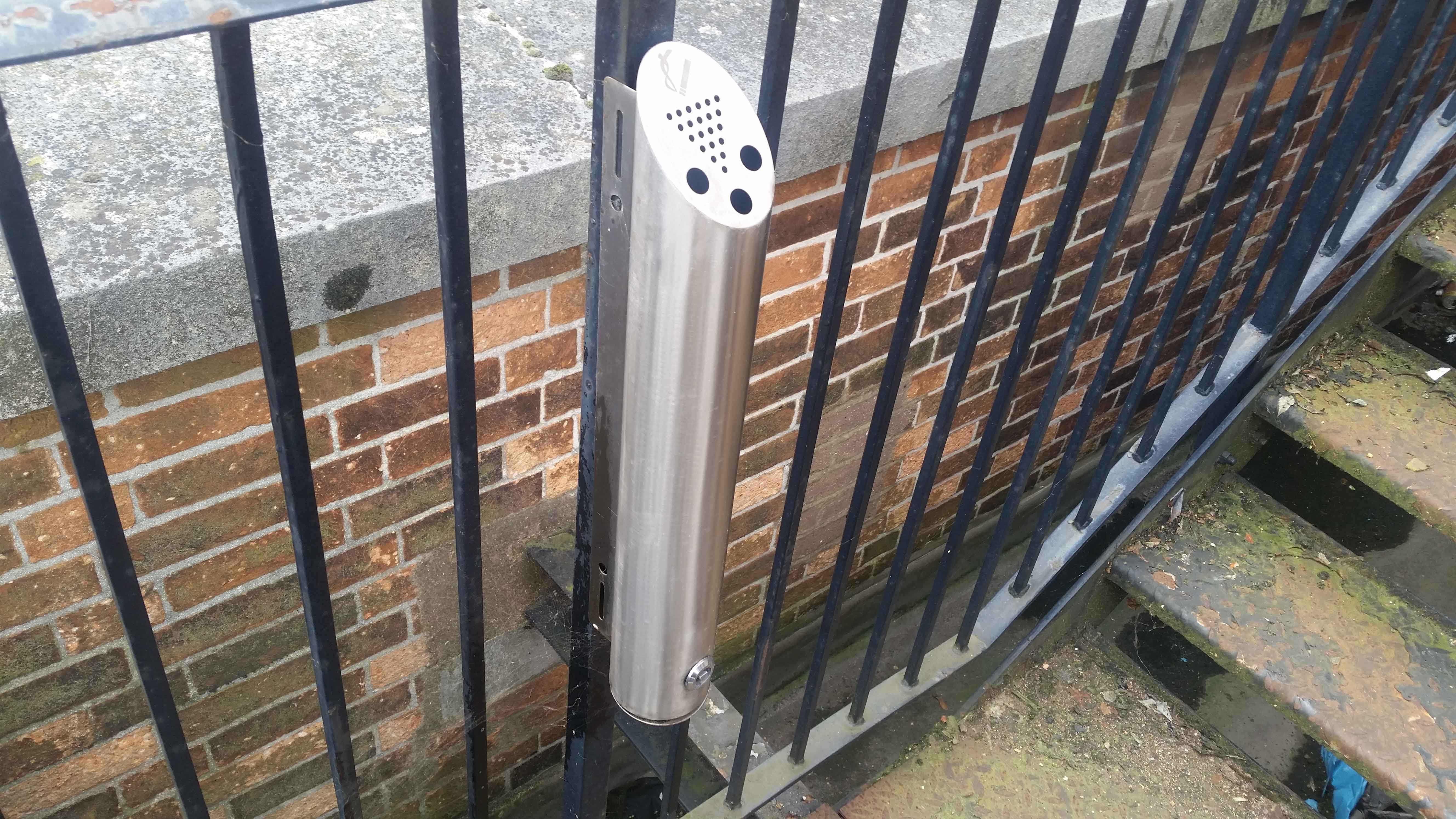

Post Mounted

Stainless Steel Banding: For the strongest and most secure fixing use 16mm stainless steel banding. This will require special banding, turnbuckles and installation too
Jubilee Clips: For non-secure quick and easy install. Stainless steel clips are preferable. Please use the optimum size to suit your post and application
Post mounted installation kit not supplied
