    Alta

    Wall-Top Seating

    Enquire about this product.

    Please select your option
    Seating Platform Size
    Please select your option
    Backrest Style
    Seating Styles
    Materials & Options
    Installation
    Codes & Dimensions
    Brochure


    Available in 4 different styles and 3 size options, our Alta Wall-Top seating system is a versatile and contemporary looking solution to utilising redundant wall space in any project or scheme – creating inviting spaces for people to dwell.

    It’s manufactured from recycled steel in our signature triple process ppc for the framework and brackets – and topped with Iroko timber slats for a durable but slick finish.

    Choose from 4 styles

    Each seating style is available in 3 lengths and end-armrests can also be fitted.
    1000mm | 1500mm | 2000mm

    Alta standard bench illustration

    Standard Bench

    405mm Depth

    Alta back stop bench illustration

    Back-Stop Bench

    550mm Depth

    Alta open back seat illustration

    Open Back Seat

    600mm Depth

    Alta enclosed seat illustration

    Enclosed Back Seat

    600mm Depth

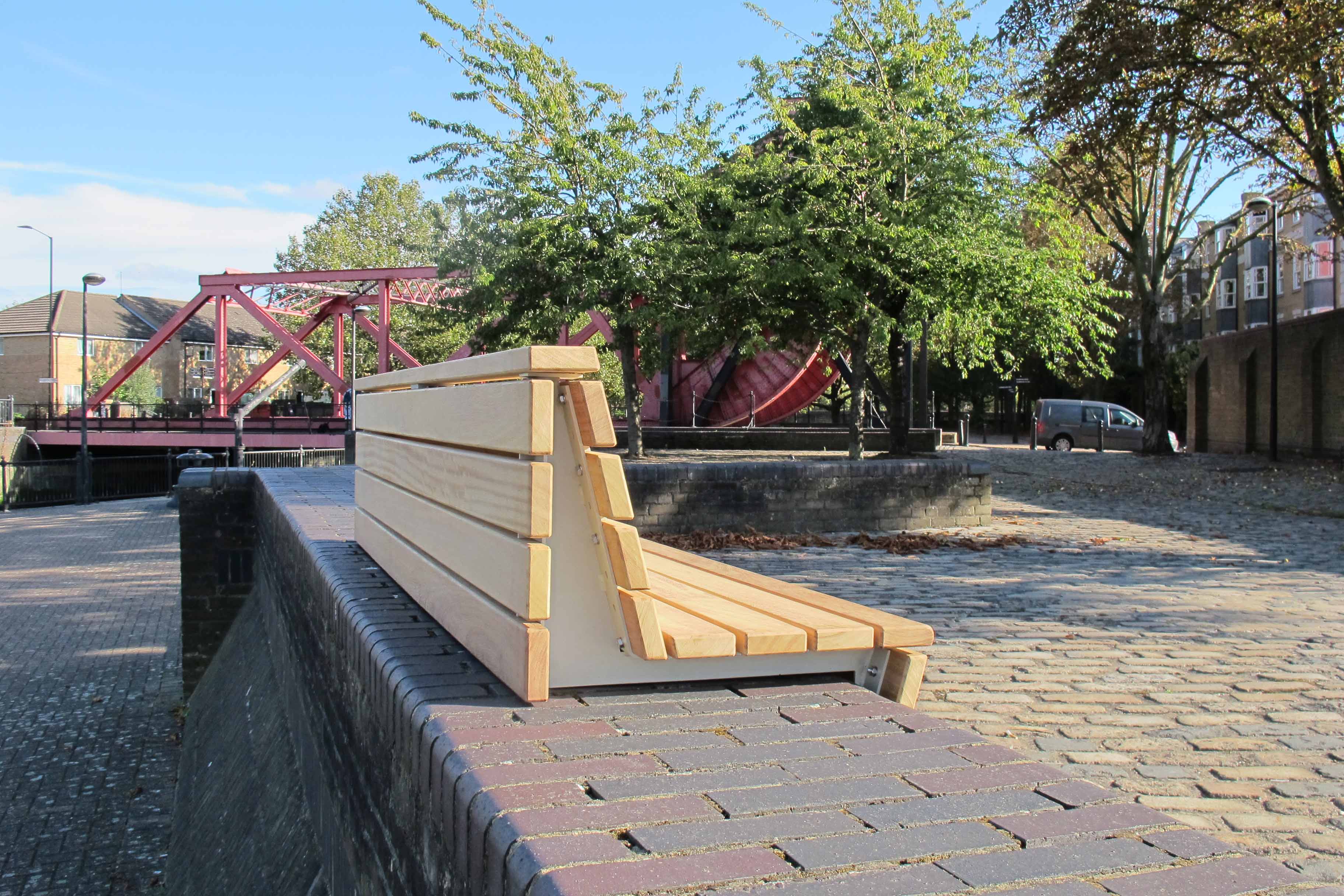

    side view alta wall-top seating by river side

    Materials & Options

    Materials & finishes

    • Steelwork: Recyled steel, triple process ppc to any standard RAL
    • Iroko timber slats: smooth planed | oiled | UV protective finishes

    Options

    • End armrests only
    alta standard bench walltop

    Installation

    • Alta can be installed directly alongside each other or with gaps between. In both situations, 300mm space is required behind platforms to access the rear wall fixings
    • The seating platform is fitted to the top of the wall at 4 points, through brackets that are designed to align with mortar joints of a standard brick-on-edge soldier course, or any homogeneous wall construction
    • Optional generic fixing kit – comprising 4 no. sets of threaded inserts for fixing into the wall, studs, nuts and washers – can be supplied on request
    • We provide full installation instructions on delivery

    Product Codes & Dimensions

    You can use the matrix below to find the code you need to specify the dimensions you need for your Alta seating.

    Alta Wall-topStandard Bench (405mm Depth)Back-Stop Bench (550mm Depth)Open Back Seat (600mm Depth)Enclosed Back Seat (600mm Depth)
    2-Person Seating (1000mm length)ALW 4B 2ALW 4X 2ALW 4S 2ALW 4E 2
    3-Person Seating (1500mm length)ALW 4B 3ALW 4X 3ALW 4S 3ALW 4E 3
    4-Person Seating (2000mm length)ALW 4B 4ALW 4X 4ALW 4S 4ALW 4E 4

    Downloads

    For more in-depth info, help yourself to the Wall-Top Seating brochure - or get in touch with our sales team.

    Wall-Top Seating Brochure

    View Online
