Bell Cast Iron Bollard | Furnitubes

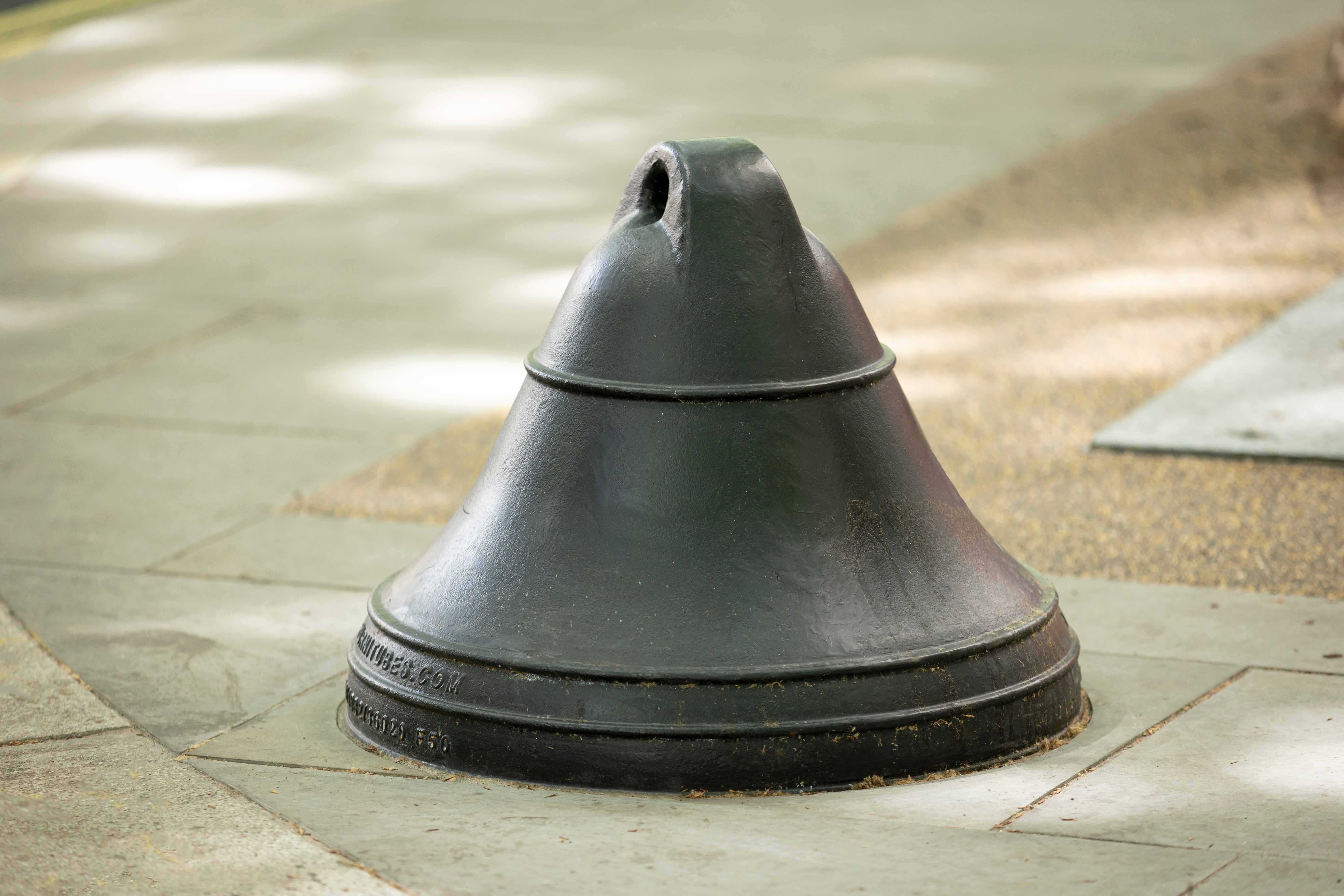

The bell bollard on pavement at strand in London

Bell 150 with CAP100 Capital Bollard, London 4

Enquire about this product.

The revolutionary Bell bollard is recognised in public spaces up and down the UK. It is the original and only solution that can solve multiple traffic management problems. Manufactured from hard-wearing cast iron lasting over 25 years.

The professional advice of a highway / civil engineer should be sought if you have any queries around the ground conditions or doubts over the suitability of the foundation.

Simple and reliable traffic management solution

The revolutionary Bell Bollard still stands as the most effective traffic management solution on the market. Manufactured from super hardwearing cast iron, it lasts over 25 years and has become a key staple on streets all around the UK.

With its unique shape and firms roots, it will deflect the wheels of even the heaviest of vehicles and is widely recognised as a tried-and-tested solution available to highways engineers and contractors.

The Bell Bollards are covered by Registered Community Design no. 008142889-0001 and may not be reproduced.

Strength in numbers

With our Bell 115 and Bell 150, you can create strength in numbers. These versions have a vertical hole in the top for mounting a 150mm diameter circular bollard. By combining the Bell bollard with our Capital or Zenith post bollards (sold separately), they can be easily identified in low light conditions, making them more viable to drivers and pedestrians.

Product	Code	Weight (kg)	Above Ground (mm)	Below Ground (mm)	Diameter (mm)
Original Bell bollard	BELL100	165	475	450	600
Bell Half	BELL120	120	475	450	600x300
Bell for City Bollard	BELL138	145	475	450	565 x 600
Bell with 150mm dia hole	BELL150	125	475	450	600
Bell with 115mm dia hole	BELL115	155	475	450	600

Installation

Minimum Installation Requirements

Foundations for Bell Bollards should have minimum offsets from the faces of the products. The professional advice of a highway / civil engineer should be sought if you have any queries around the ground conditions or doubts over the suitability of the foundation.

See for yourself how a Bell bollard is installed, and full details are in the brochure.
