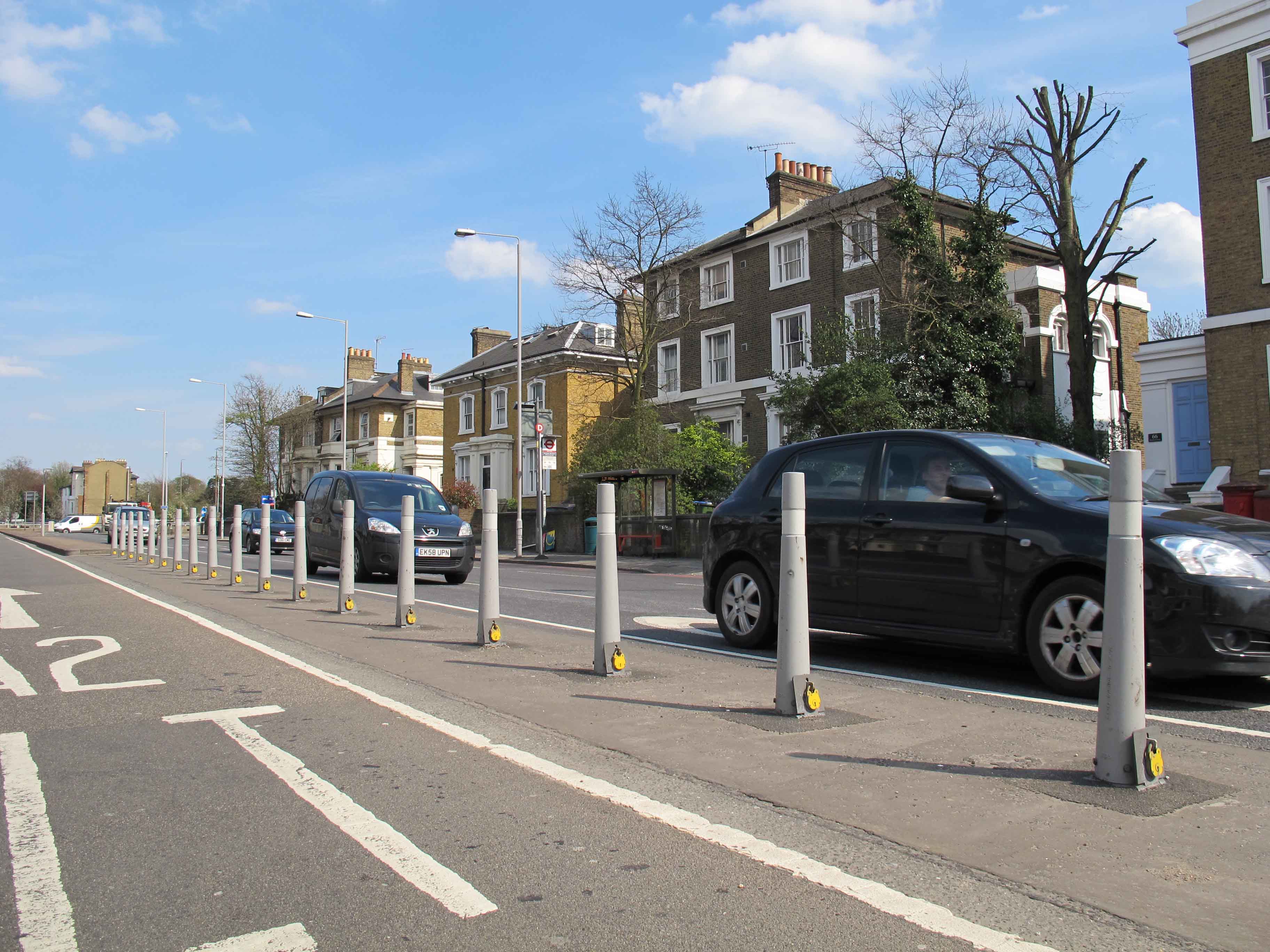

Capital Bollard - Richmond, London 3-lo-tidy

Capital-removable-bollards

Capital Bollard - Richmond, London 3-lo-tidy

Capital-removable-bollards

Enquire about this product.

The Capital bollard balances strength and protection with modern aesthetics. It is tapered and features a recess which can be painted in a contrasting colour or covered with reflective tape.

Available as a removable bollard in cast iron which can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use. Reflective tape is available upon request.

Product	Code	Weight (kg)	Above Ground (mm)	Below Ground (mm)	Diameter (mm)
Capital cast iron bollard	CAP 100	35	1000	350	150
Capital cast iron removable bollard	CAP 100 CI	16	1000	350	150

Capital-bollard-installtion

Installation

Root fixed

Foundation depth is usually the same as the root depth of the bollard
Minimum recommended foundation diameter is the root diameter plus 200mm
Concrete mix to 25 newtons
