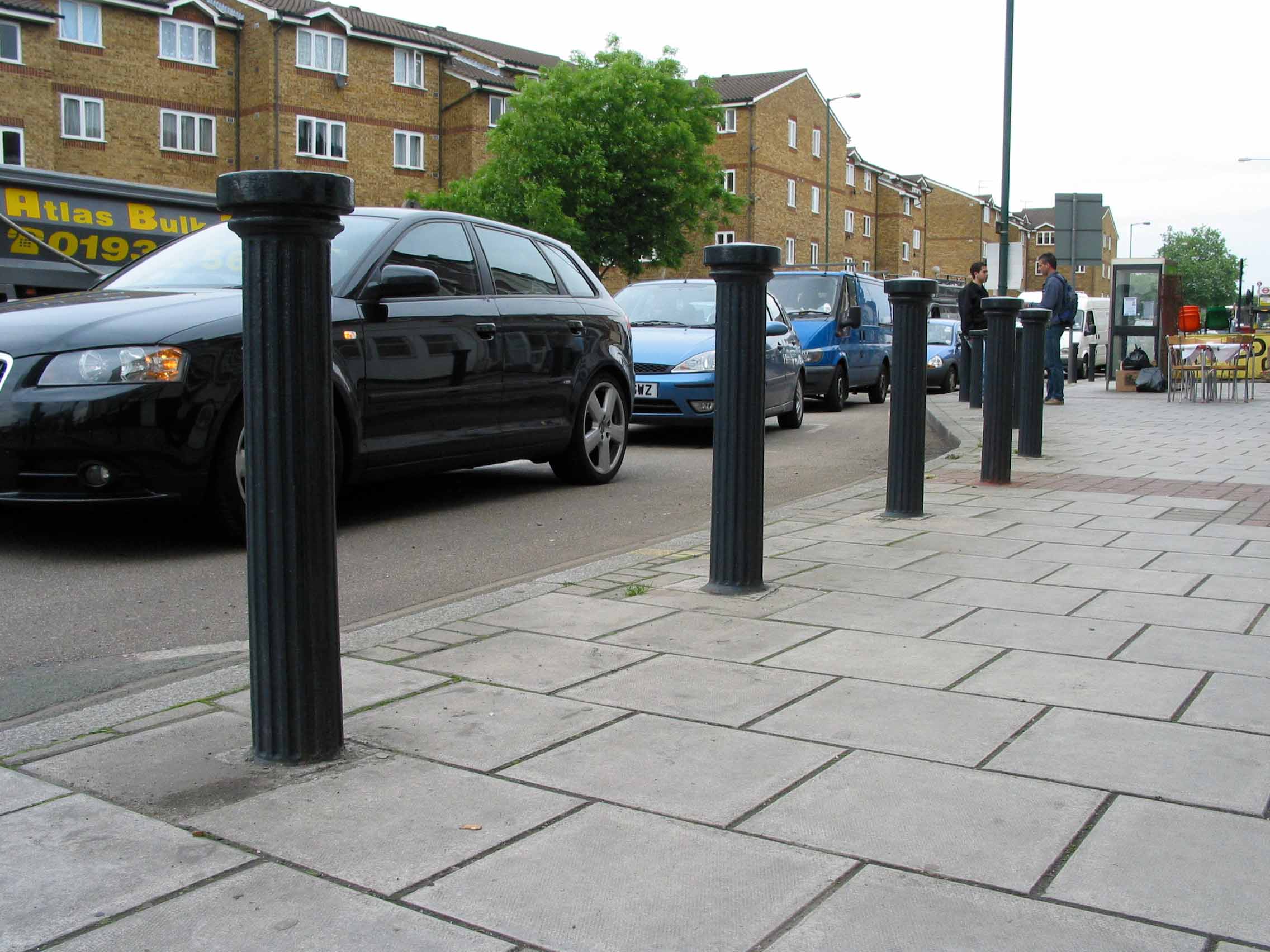

Row of Doric cast iron bolllards

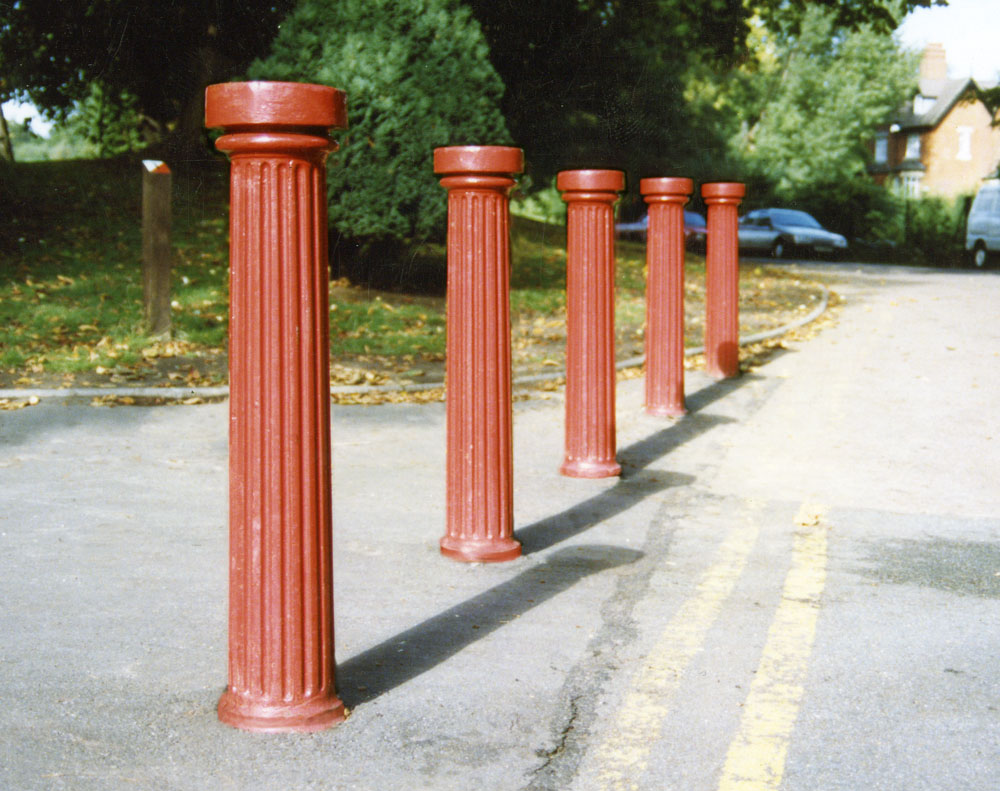

Doric cast iron bollards painted red

Doric removable bollard

Row of Doric cast iron bolllards

Doric cast iron bollards painted red

Doric removable bollard

Enquire about this product.

Based on the classical Greek column, our Doric cast iron bollard features fluted sides and a shallow domed top.

This well-proportioned and durable bollard is commonplace throughout many UK towns and cities, suitable for both modern and traditional locations.

They can be supplied with eye bolts and reflective tape.

Product	Code	Weight (kg)	Above Ground (mm)	Below Ground (mm)	Diameter (mm)
Doric cast iron bollard	DOR 520	55	920	290	170
Doric aluminium removable	DOR 520 AR	25	920	320	170

Doric Bollard Installation details

Installation

Root fixed

Foundation depth is usually the same as the root depth of the bollard
Minimum recommended foundation diameter is the root diameter plus 200mm
Concrete mix to 25 newtons

Removable

Foundation depth 320mm
Minimum recommended foundation 450mm sq
Dig an additional drainage hole 80mm (d) x 150mm (sq) and fill with pea shingle (directly below socket)
Concrete mix to 25 newtons
