Fin Cycle Stand

Scroll

a row of fin cycle stands outside the entrance of bow school

Enquire about this product.

Materials & Options

Installation

Codes & Dimensions

Brochure

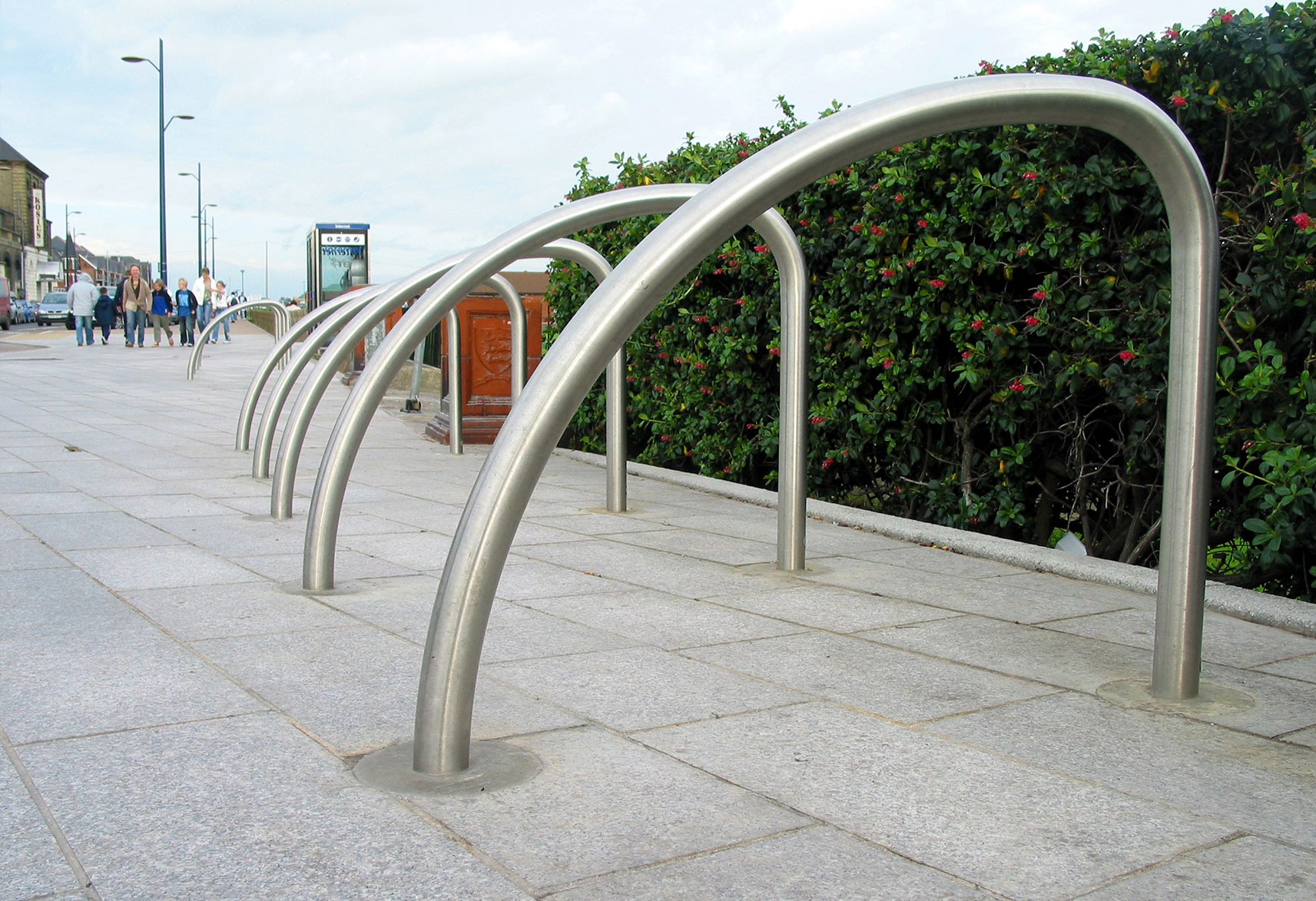

An original Furnitubes’ design – the Fin cycle stand is inspired by the profile of a shark’s fin. Contemporary in design and robust in construction, Fin is manufactured from heavy duty recycled steel.

Built to last, it comes in two tube sizes in either a root fixed or bolt down and is available in a galvanised or stainless steel finish.

Steel

Stainless steel

Materials & Options

Materials & Finishes

Stainless steel – G304 or G316 bright polished or satin polished
Mild steel – galvanised or polyamide finish in black

Options

Tube diameter: Ø48mm or Ø60mm
Decorative corner plate (with hole)
Corner plate (with hole)
Tapper rail

Installation

Root fixed

Foundation depth is usually the same as the root depth of the cycle stand
Minimum recommended foundation square is the root square plus 200mm
Concrete mix to 25 newtons

Base plated

Each leg has a base plate with 2no fixing holes to take Ø10mm ground fixings
Fixings not supplied

Fin Cycle Stand	Product Code	Tube Diameter	Width (mm)	Height (mm)
Galv Steel - Root Fixed (10kg)	FIN 480	Ø48	980mm	800mm Above Ground 300mm Below Ground
Galv Steel - Bolt Down (10kg)	FIN 480 B	Ø48	980mm	800mm
Galv Steel - Root Fixed (12kg)	FIN 600	Ø60	1040mm	800mm Above Ground 300mm Below Ground
Galv Steel - Bolt Down (12kg)	FIN 600 B	Ø60	1040mm	800mm
