Nordic Cycle Stand

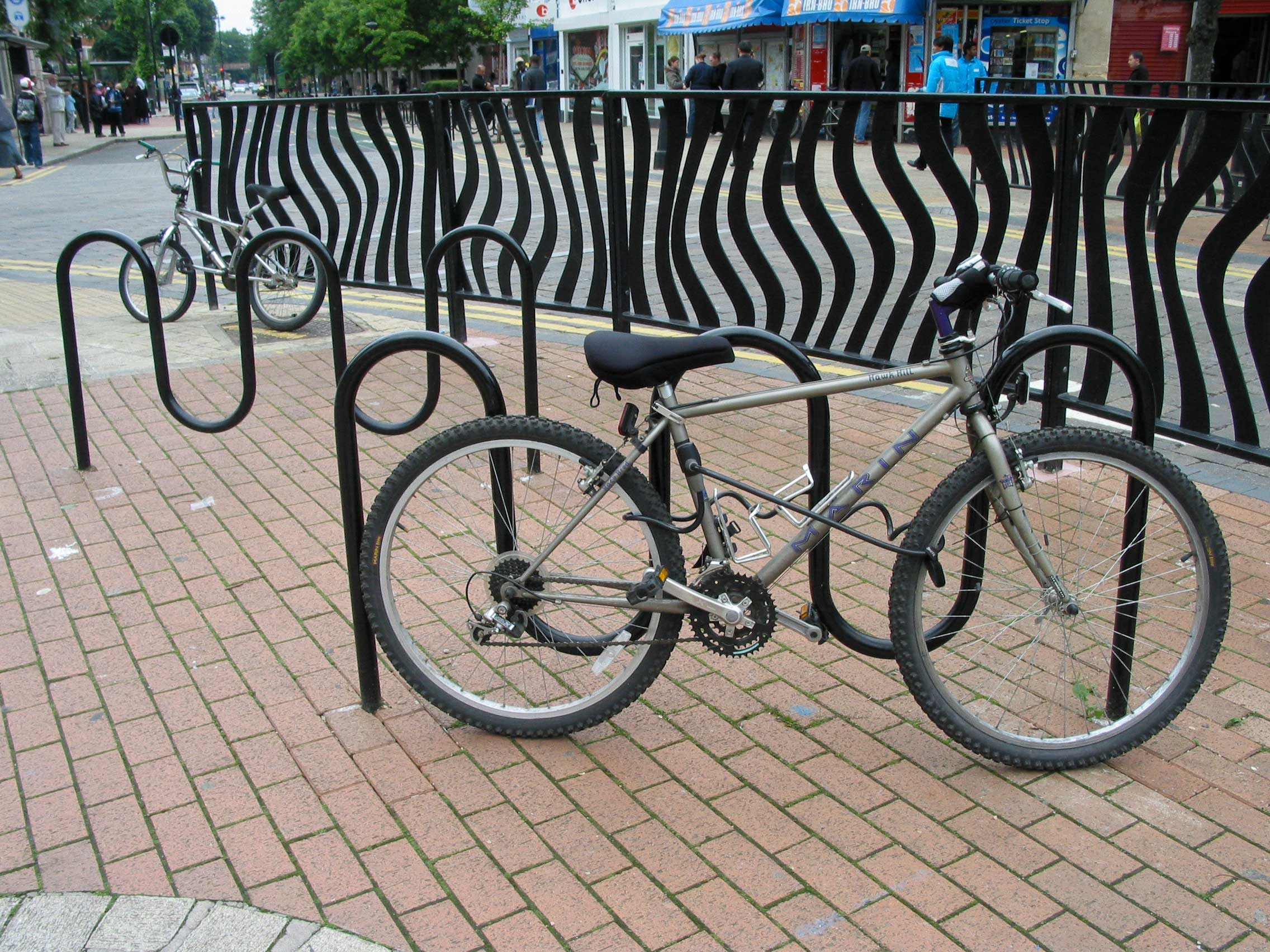

Nordic cycle stand in black with bike on high street

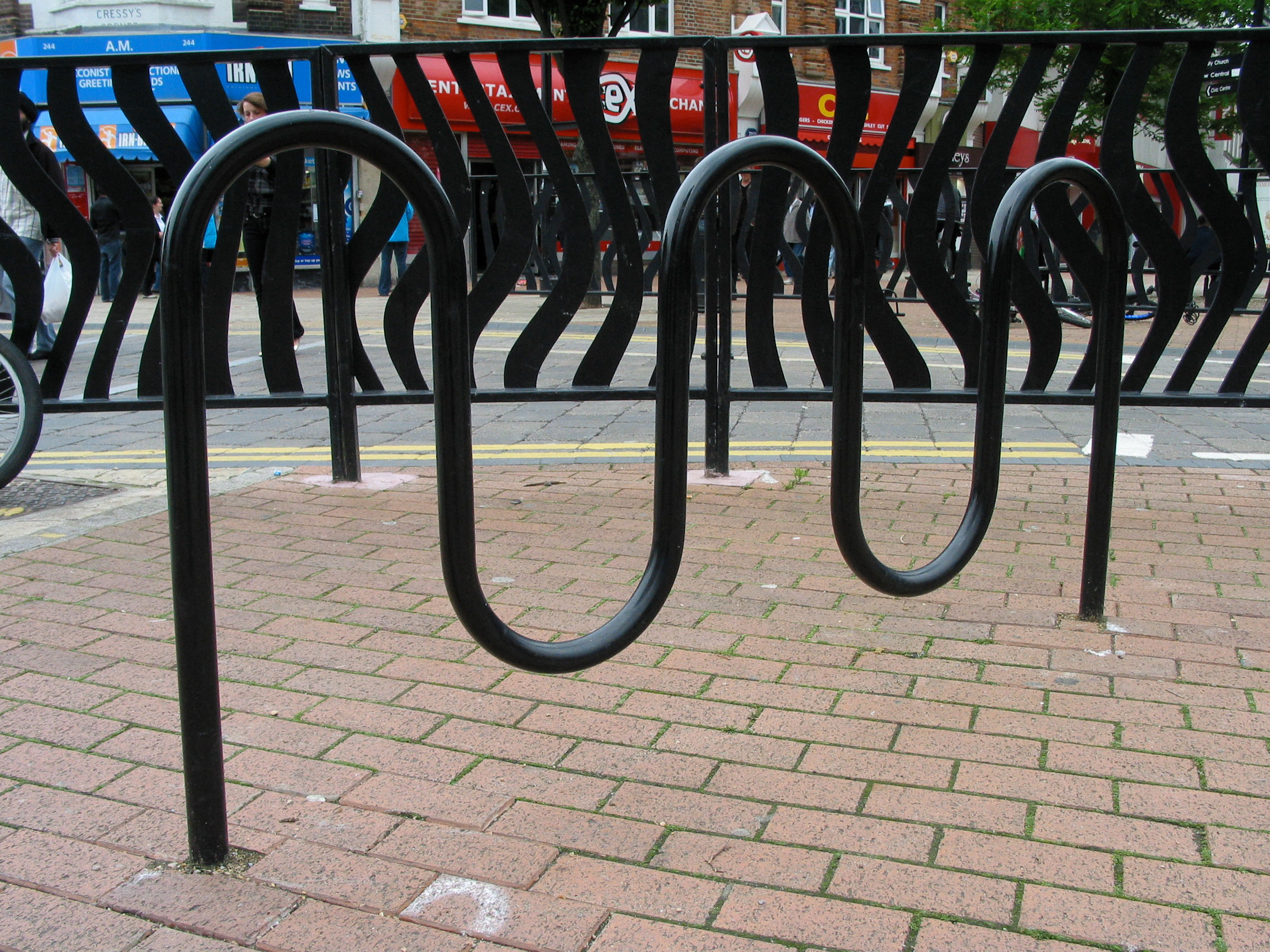

Nordic cycle stand with polymide coating in public realm scheme

steel nordic cycle stand by brick wall

Nordic cycle stand in black with bike on high street

Nordic cycle stand with polymide coating in public realm scheme

steel nordic cycle stand by brick wall

Enquire about this product.

**Minimum order of 10**

Materials & Options

Installation

Codes & Dimensions

Brochure

Utilising loops and curves to create a fun and dynamic design, the Nordic steel cycle stand is a playful addition to any site, whilst also serving as an effective solution to cycle parking thanks to its multiple locking points.

We offer the Nordic in 3 sizes with two, three or four looped crests with a polyamide or stainless steel with a bright or satin polished finish.

Nordic cycle stand in black with bike on high street

Materials & Options

Materials & Finishes

Stainless steel – G304 or G316 bright polished or satin polished
Mild steel – polyamide finish in black

Options

2, 3 or 4 loops
Tube diameter: Ø48mm or Ø50
Bolted down or root fixed

Nordic cycle stand with polymide coating in public realm scheme

Installation

Root fixed

Foundation depth is usually the same as the root depth of the cycle stand
Minimum recommended foundation square is the root diameter plus 200mm
Concrete mix to 25 newtons

Bolt down

Two base plates 120mm x 100mm x 6mm thick
Each base plate has 4no fixing holes to take Ø10mm ground fixing (maximum)
Fixings not supplied

Nordic Cycle Stand	Product Code	Tube Diameter	Width (mm)	Height (mm)
2-Loop \| Stainless Steel Satin G304 - Root Fixed (12kg)	NOR 302 S4	Ø50	945mm	760mm Above Ground 350mm Below Ground
3-Loop \| Black Polyamide - Root Fixed (17kg)	NOR 303 PM	Ø48	1550mm	760mm Above Ground 350mm Below Ground
4-Loop \| Stainless Steel Satin G304 - Root Fixed (23kg)	NOR 304 S4	Ø50	2150mm	760mm Above Ground 350mm Below Ground
