    Zenith

    Seat & Bench

    Enquire about this product.

    Please select your option
    Bench Type

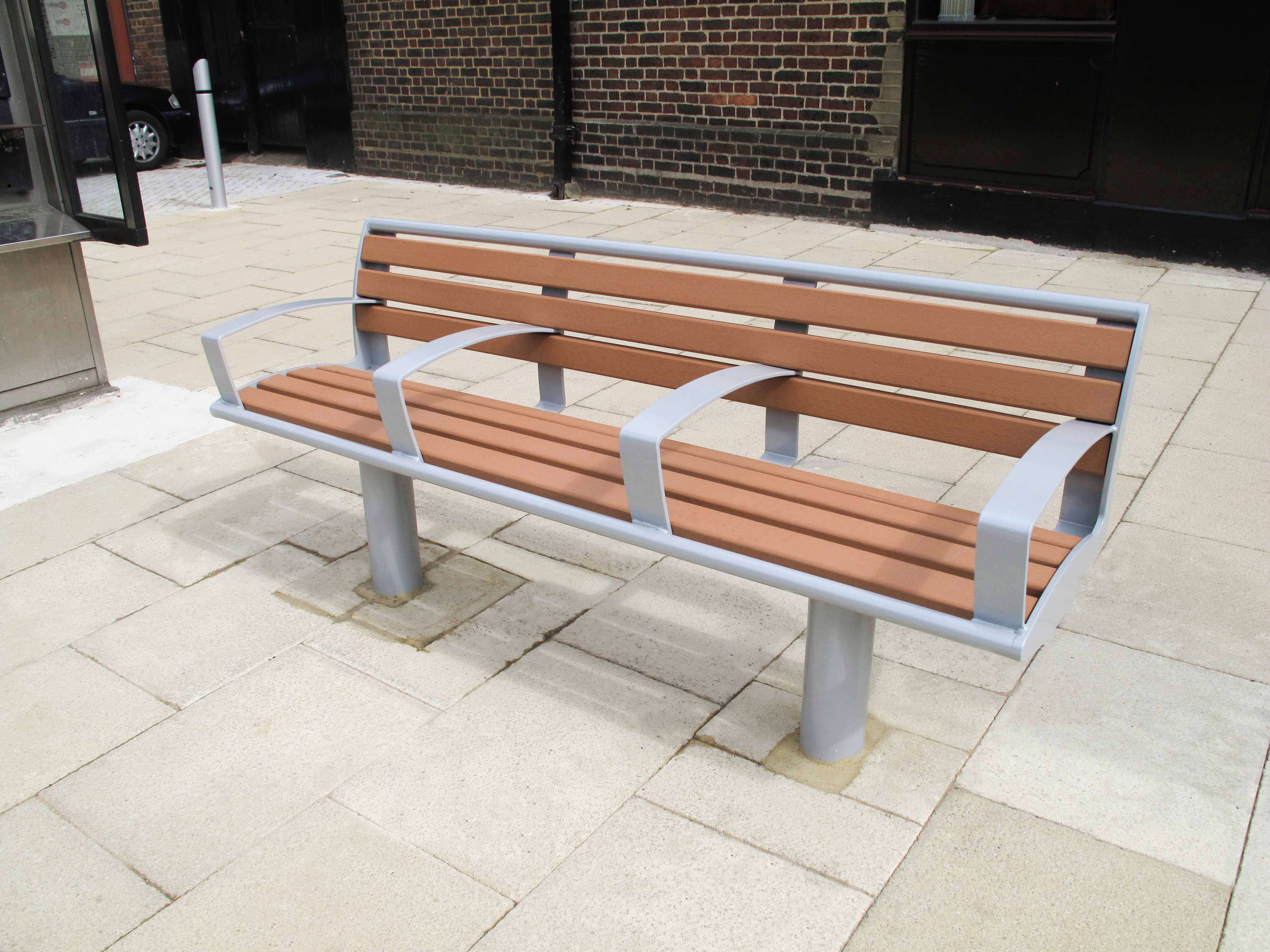

    Zenith bench with armrests
    Zenith seats Cheltenham Racecourse-02

    Product Codes & Dimensions (Straight Seating)

    Use the codes below to specify your straight Zenith seating

    3-person (LxW) 1830mm x 400mm  | 320mm Below Ground x 500mm Above Ground
    4-person (LxW) 2430mm x 400mm  | 320mm Below Ground x 500mm Above Ground

    Seating Configuration3 Person Seating4 Person Seating
    No ArmsBench: ZEN B6    ||    Seat: ZEN 6Bench: ZEN B8    ||    Seat: ZEN 8
    End ArmsBench: ZEN B6A    ||    Seat: ZEN 6ABench: ZEN B8A    ||    Seat: ZEN 8A
    2 Centre ArmsBench: ZEN B6C    ||    Seat: ZEN 6CBench: ZEN B8C    ||    Seat: ZEN 8C
    End Arms & 2 Centre ArmsBench: ZEN B6AC    ||    Seat: ZEN 6ACBench: ZEN B8AC    ||    Seat: ZEN 8AC

    Product Codes & Dimensions (Curved Seating)

    Use the codes below to specify your curved Zenith seating

    Seating RadiusBenchSeat (Internal Backrest)Seat (External Backrest)
    60° / 1.8m radiusZEN RB 186ZEN RSX 186ZEN RSV 186
    45° / 2.4m radiusZEN RB 248ZEN RSX 248ZEN RSV 248
    36° / 3.0m radiusZEN RB 3010ZEN RSX 3010ZEN RSV 3010
    30° / 3.6m radiusZEN RB 3612ZEN RSX 3612ZEN RSV 3610
