Millennium Bollard

Millennium Bollard

MIL701-silver-snow-close-up-31

Millennium Bollard

MIL701-silver-snow-close-up-31

Enquire about this product.

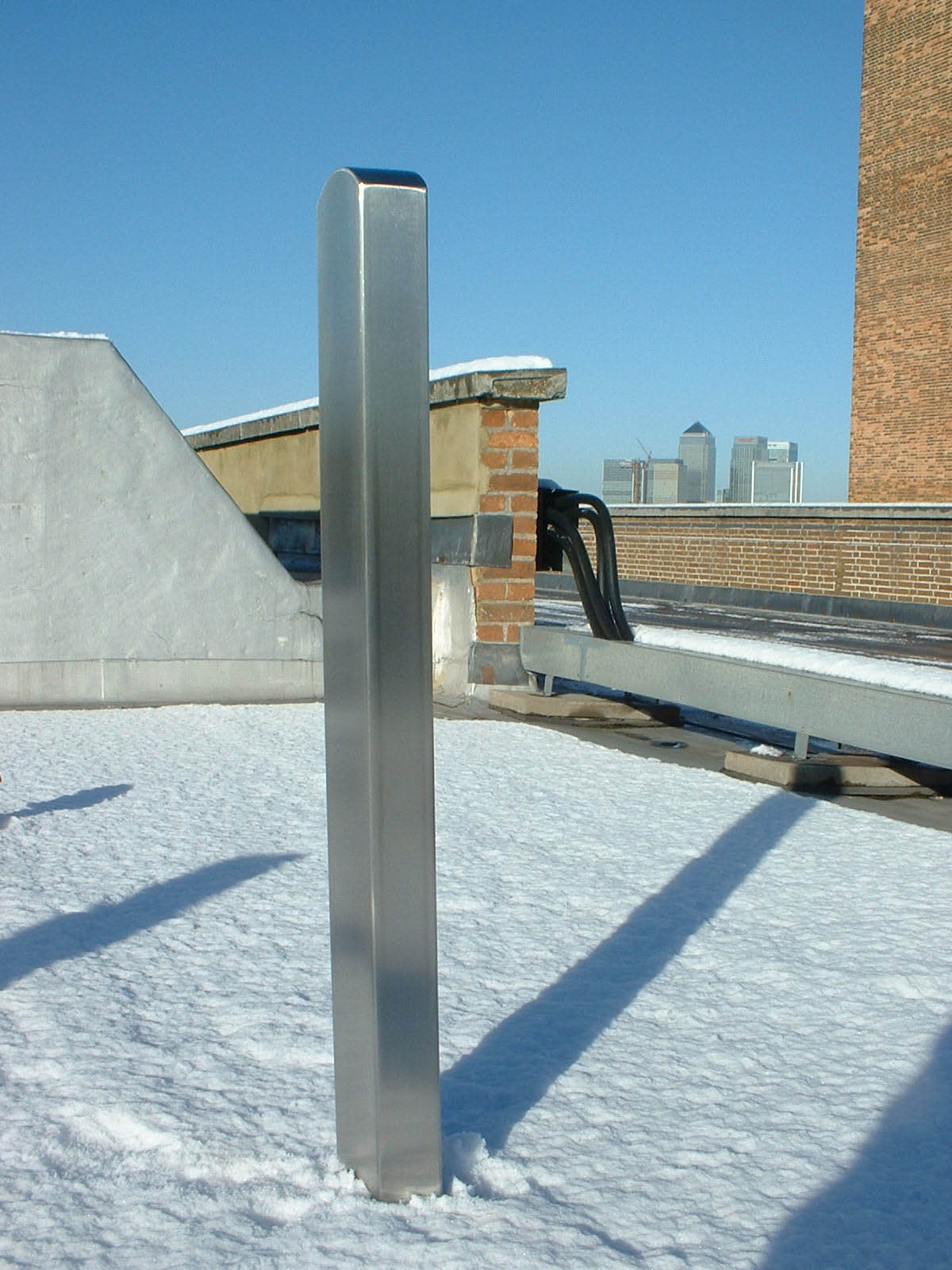

The Millennium bollard is a stainless-steel satin polished bollard. It combines a modern rectangular profile with a simple, elegant, rounded top. The Millennium bollard is available in grade 304 or 316, with a satin polished finish. The Millennium can be used as a removable bollard housed in socket or F1 socket.

Product	Code	Weight (kg)	Above Ground (mm)	Below Ground (mm)	Diameter (mm)
Millennium stainless steel bollard	MIL 701 S	9	900	300	120

Millennium-bollard-installtion

Installation

Root fixed

Foundation depth is usually the same as the root depth of the bollard.
Minimum recommended foundation is the root diameter plus 200mm.
Concrete mix to 25 newtons

Removable

Foundation depth 320mm
Minimum recommended foundation 450mm sq.
Dig an additional drainage hole 80mm (d) by 150mm sq; fill with pea shingle (directly below socket)
Concrete mix to 25 newtons

Architect drawing

Looking to specify with NBS?

Use the NBS 'Add to spec' button to include in your specification
